48” Continuous Planetary Grinders
Precision Grinding Starts the Optical Process Right
The 48-inch Continuous Planetary Grinders are available for precision flat-optics production. Designed to establish a controlled, consistent surface early in the manufacturing process, these heavy-duty grinders provide multiple tooling positions and recirculating grinding-compound systems for productive optical grinding operations.
Three Continuous Planetary Grinders are available.
48” Continuous Planetary Grinders
48” Continuous Planetary Grinder CG-1
- 48” precision cast-iron table
- Stainless-steel top and drip edge
- Brass grinding surface
- Heavy-duty custom fabricated steel machine base
- Browning 1 HP motor
- Three large tooling positions for various component sizes
- Surrounding tray for recirculating grinding compound
- GreyMills heavy-duty recirculation pump
- Approximate footprint: 70” × 70”
48” Continuous Planetary Grinder CG-2
- 48” precision-ground cast tabletop
- Brass grinding surface
- Heavy-duty steel machine base
- Three large tooling positions for various component sizes
- Surrounding tray for recirculating grinding compound
- Approximate machine base: 90” × 62”
48” Continuous Planetary Grinder CG-3
- 48” precision-ground cast tabletop
- Ready for installation of a new grinding surface
- Heavy-duty steel machine base
- Three large tooling positions for various component sizes
- Surrounding tray for recirculating grinding compound
- Approximate machine base: 90” × 62”
48” Continuous Planetary Grinder CG-1
48” Continuous Planetary Grinder CG-2
48” Continuous Planetary Grinder CG-3
48” Continuous Planetary Grinders Image Gallery
Click to Enlarge

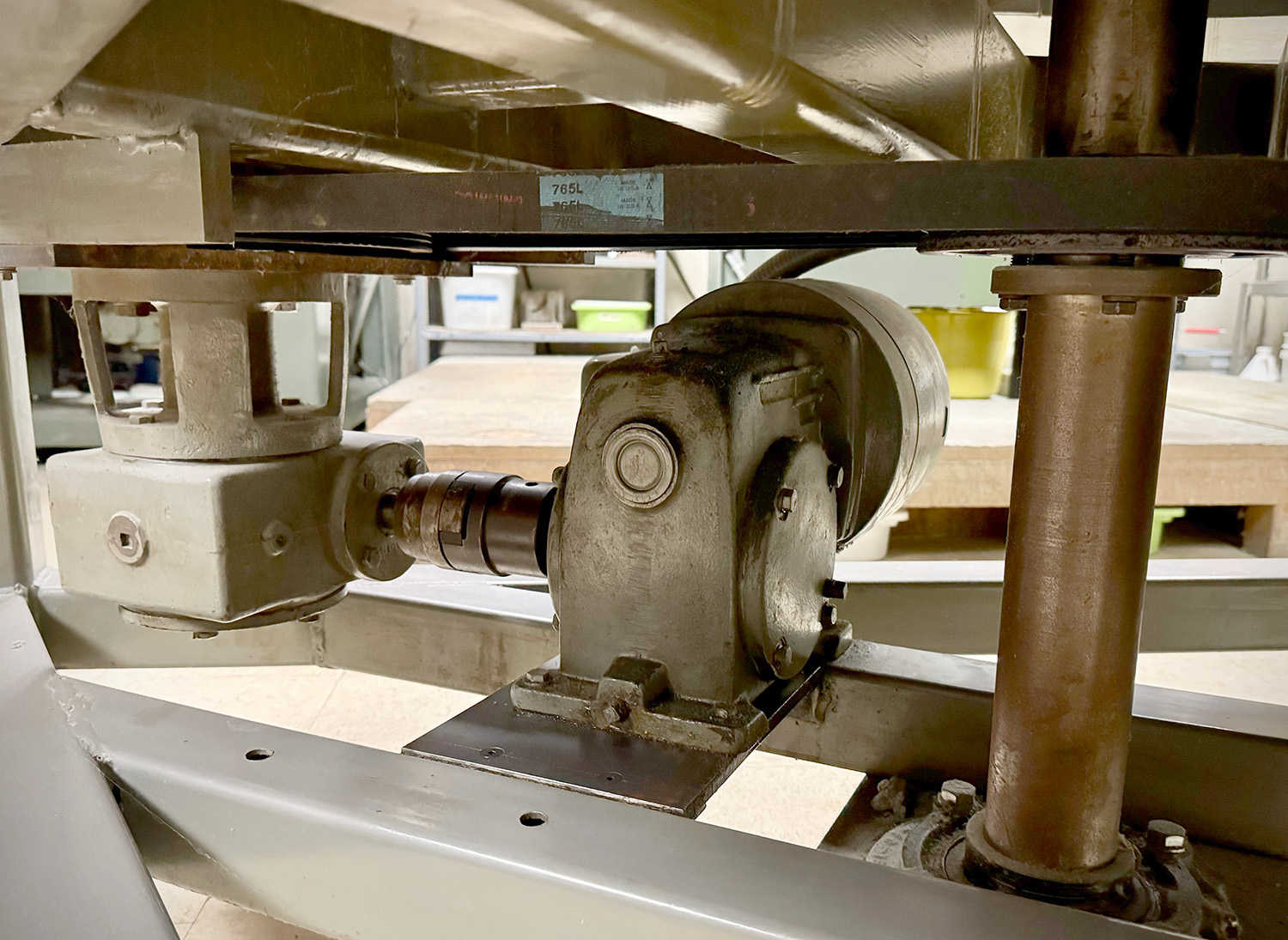

CG1 - Belt Drive & Gearbox

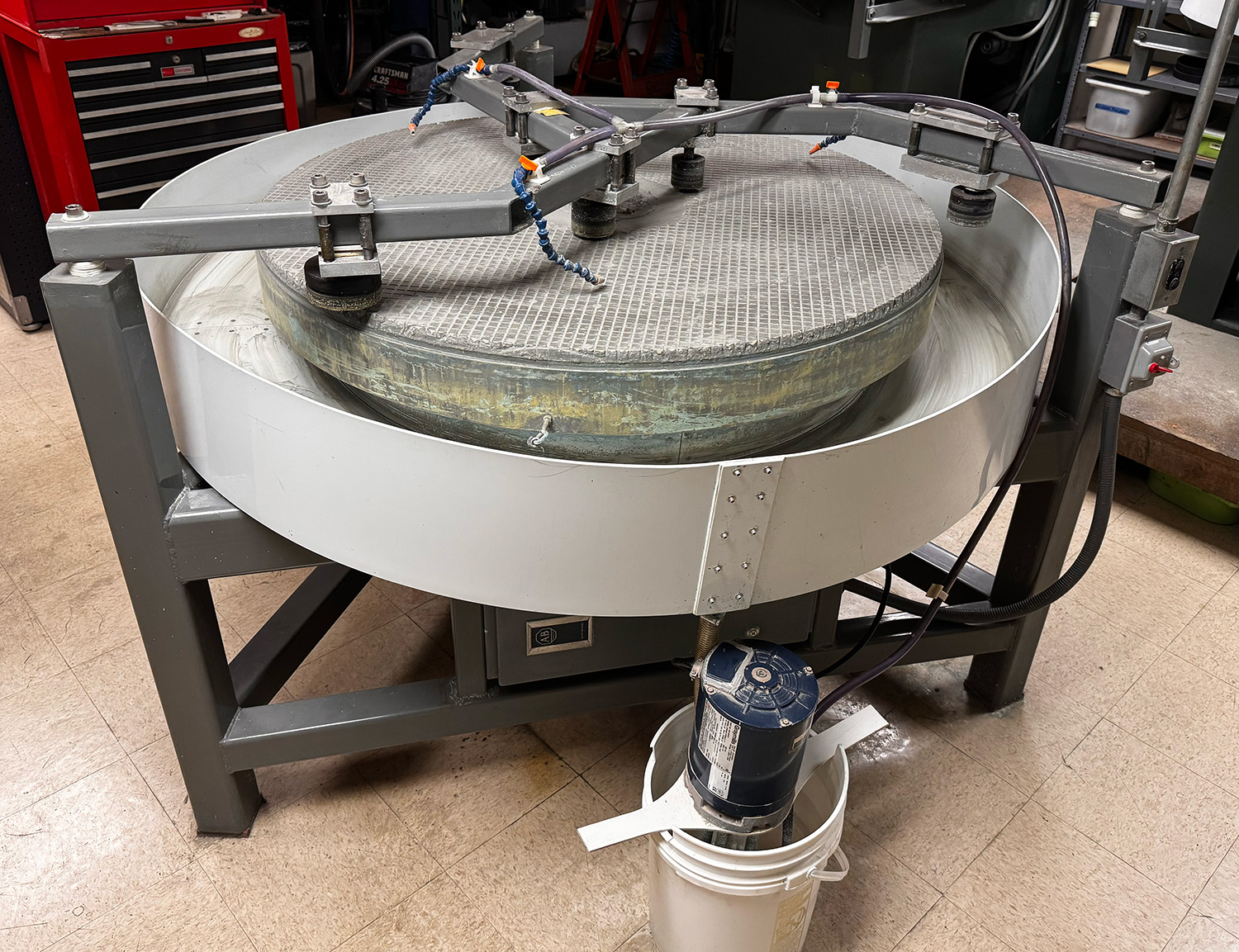

CG-1 Full View

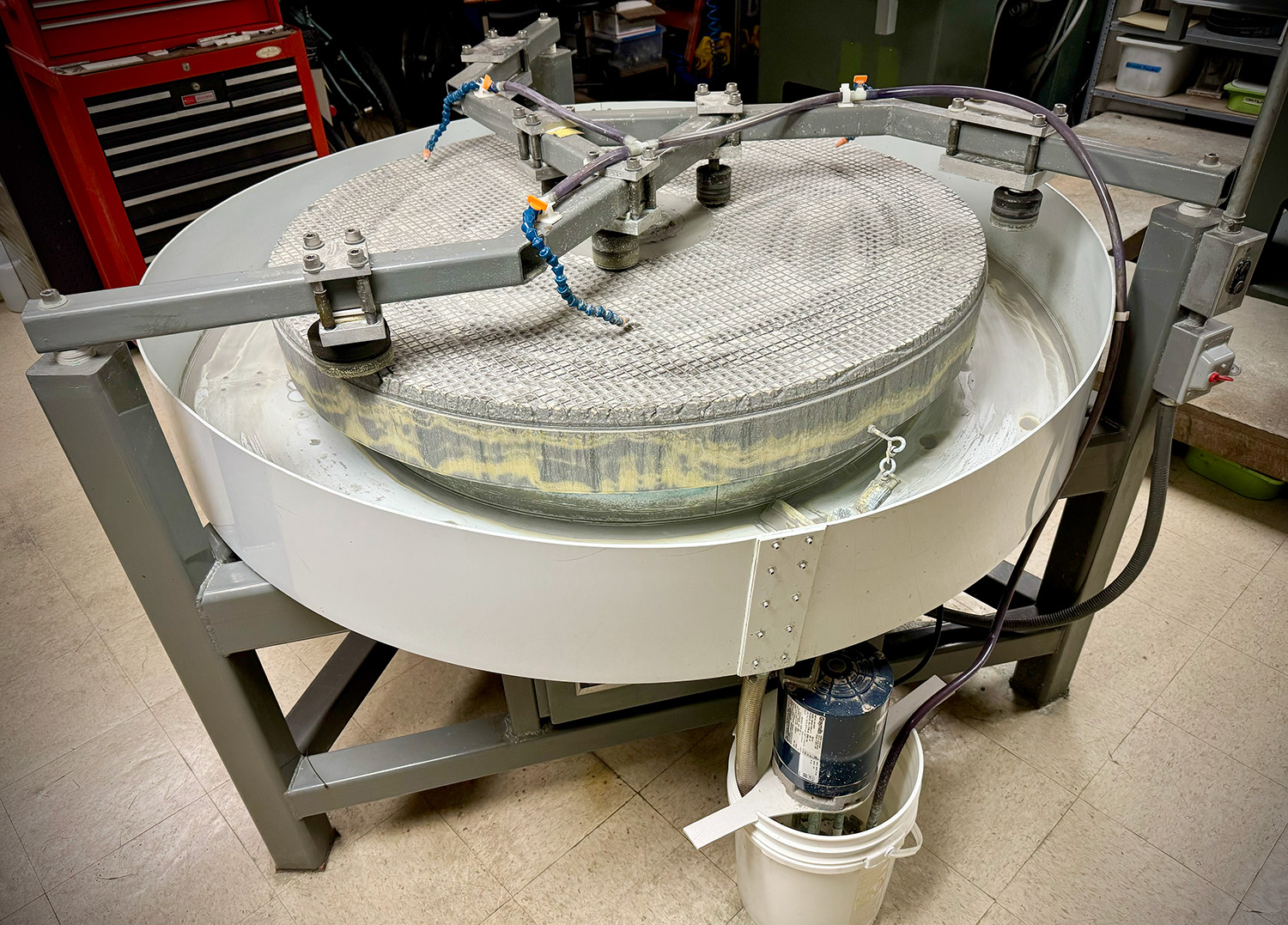

CG-1 Top View

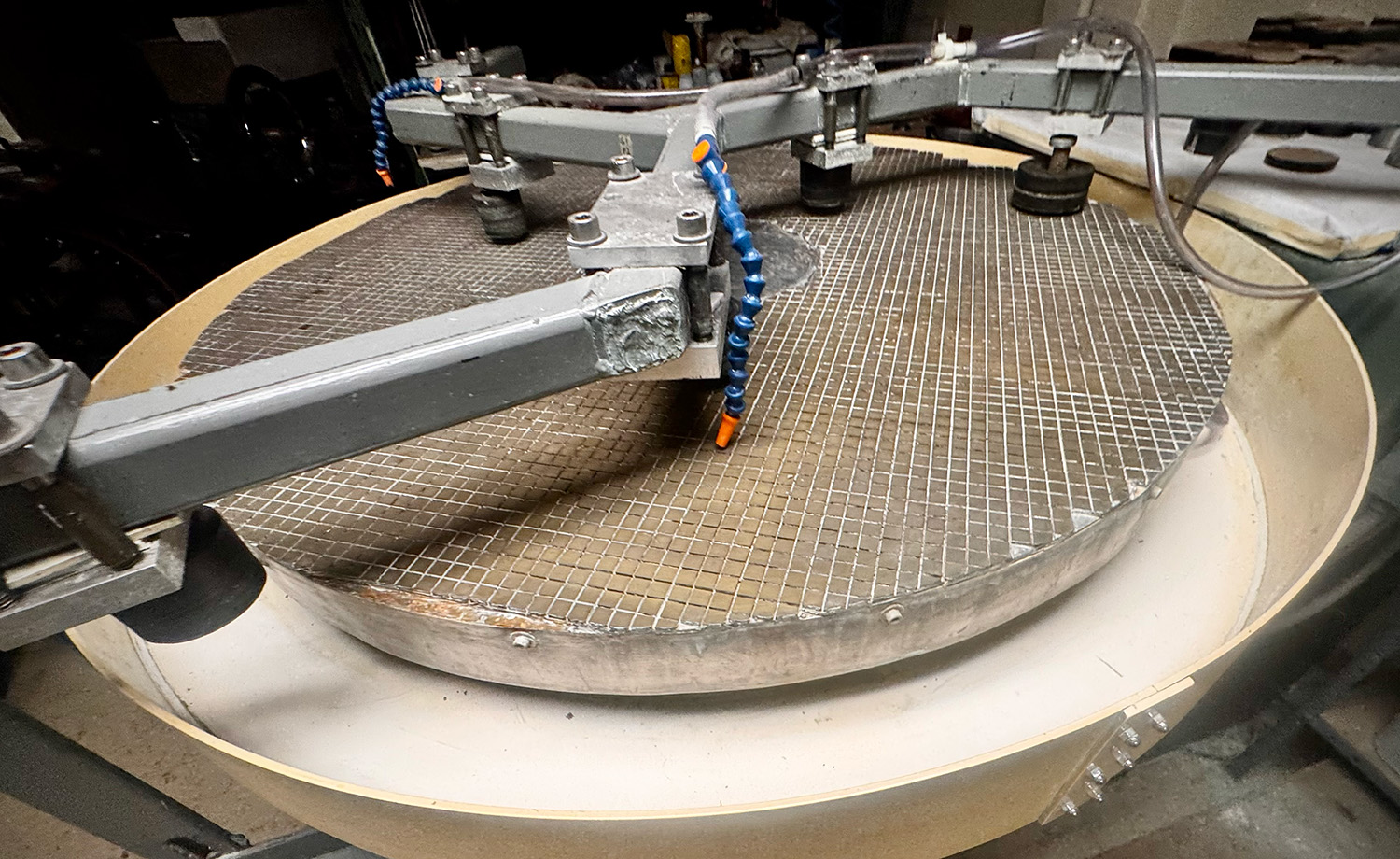

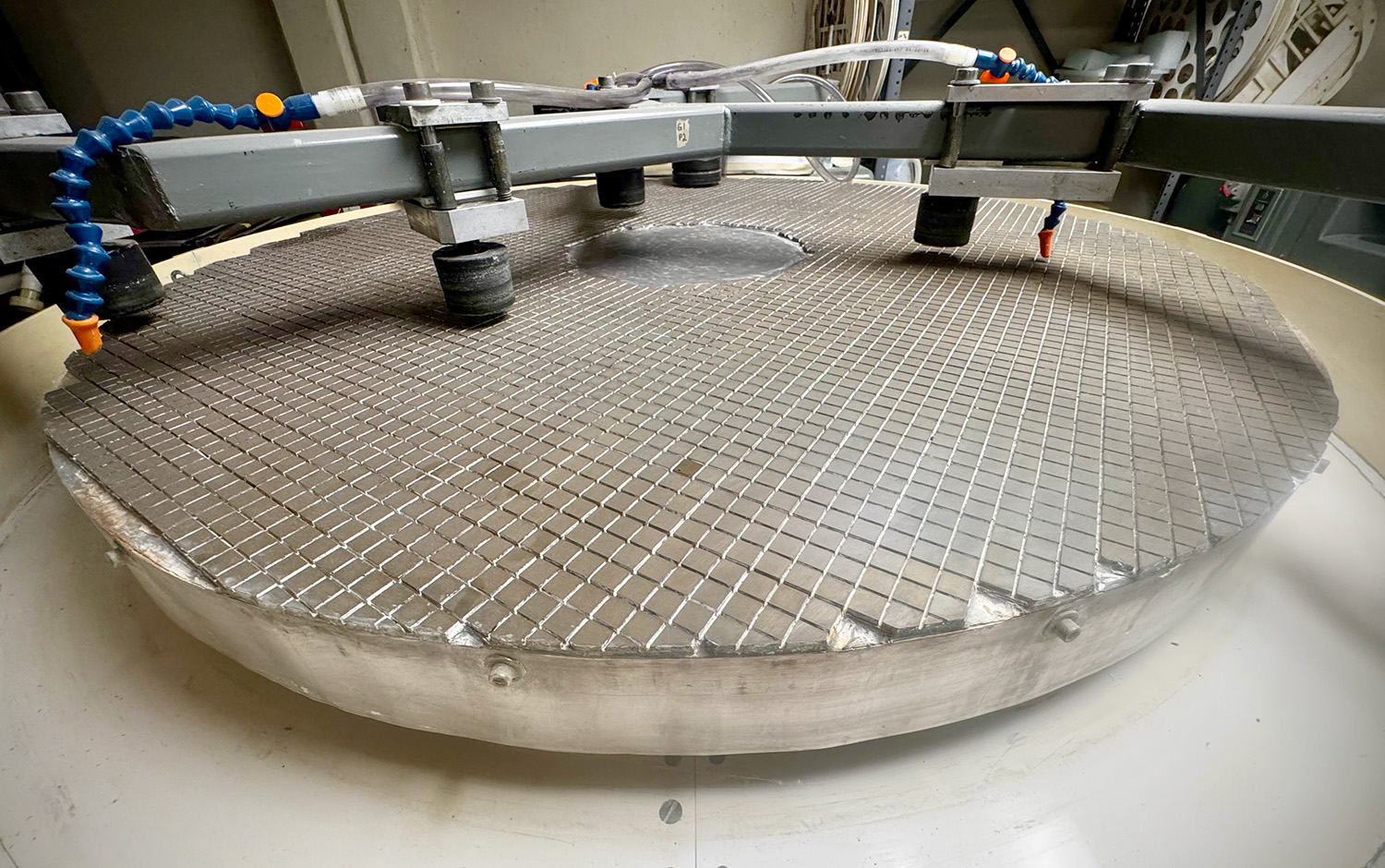

CG-2 Brass Top
CG-2 Brass Top

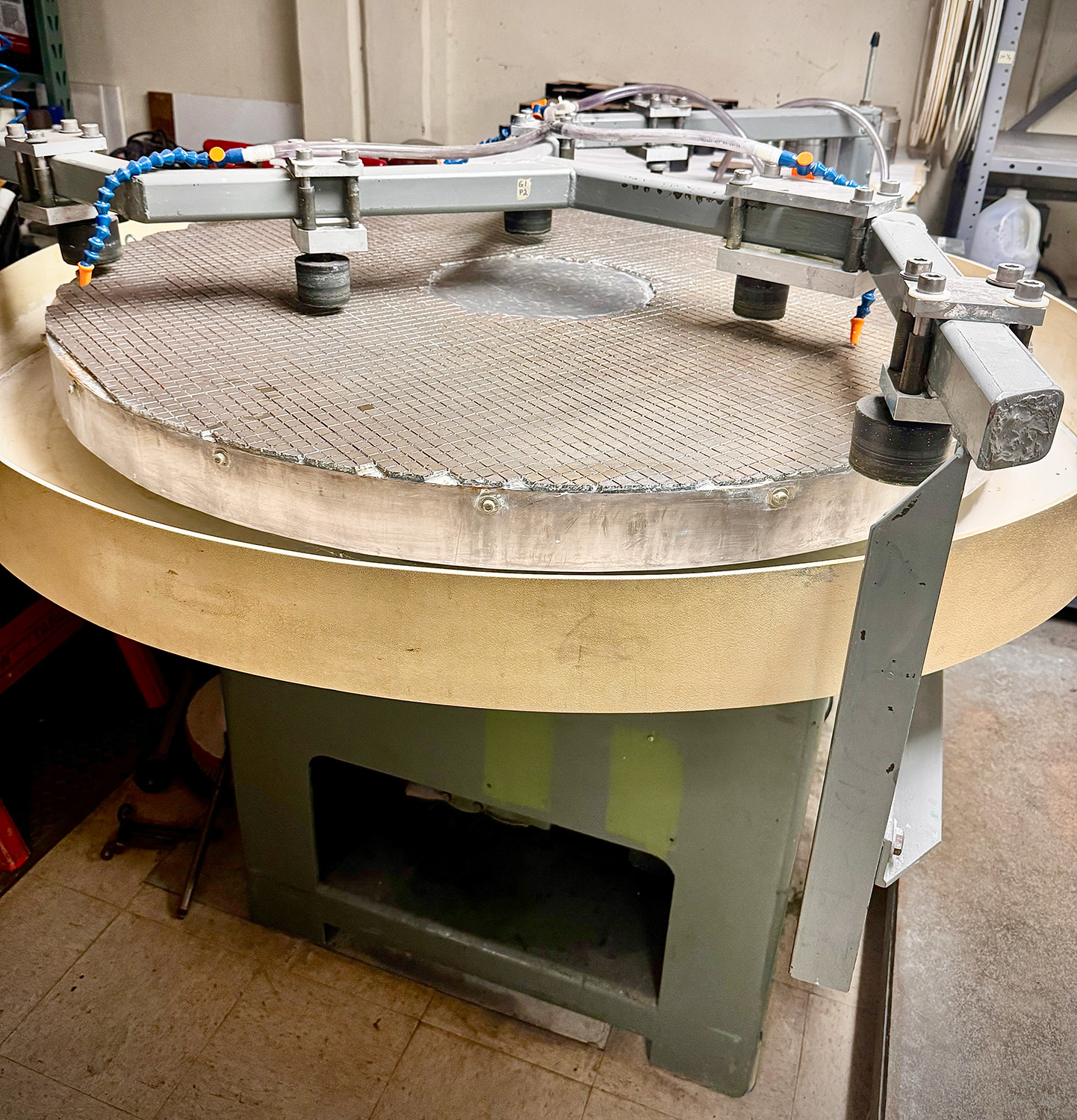

CG-2 Full View

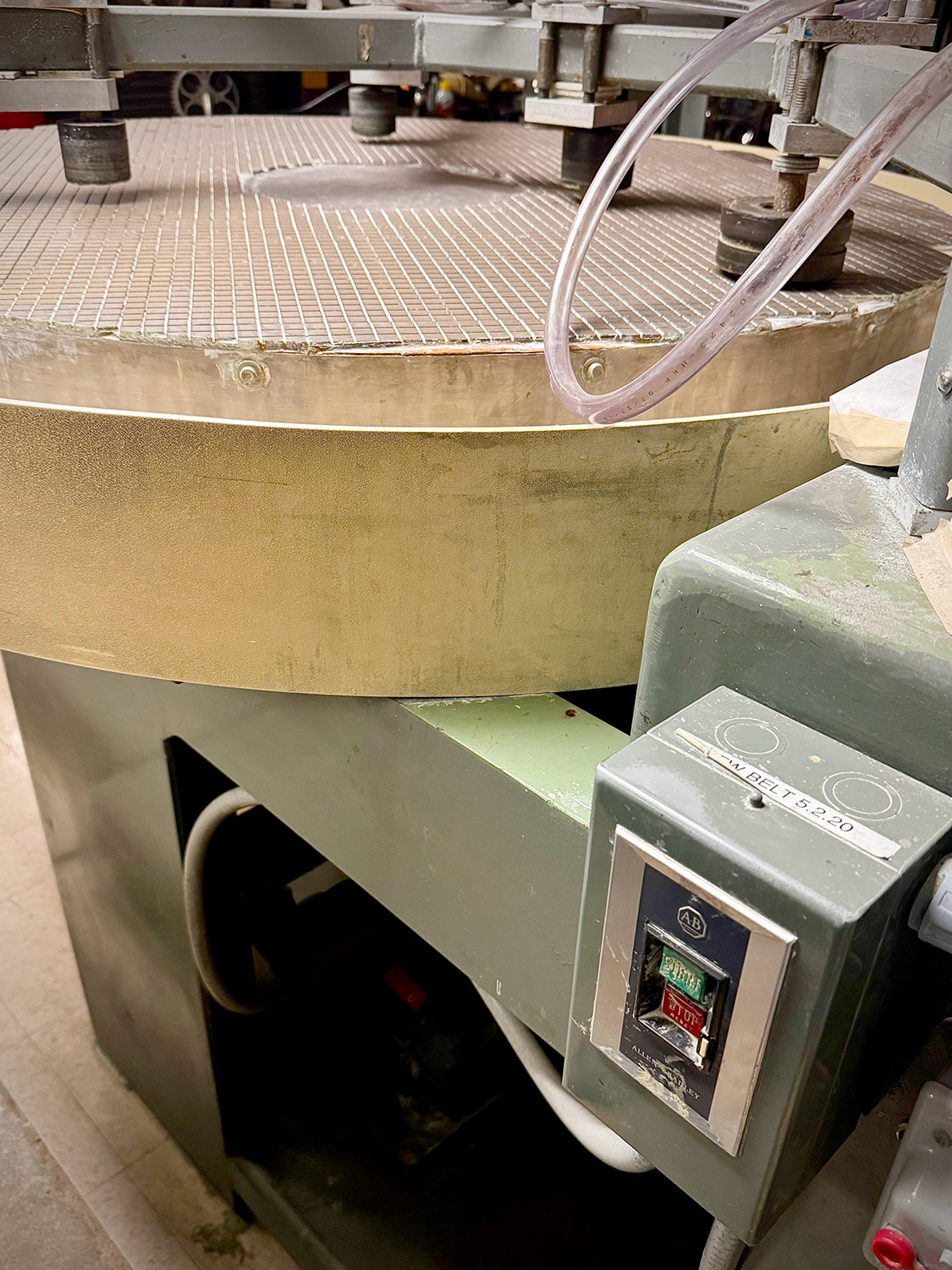

CG-2 On Off Switch

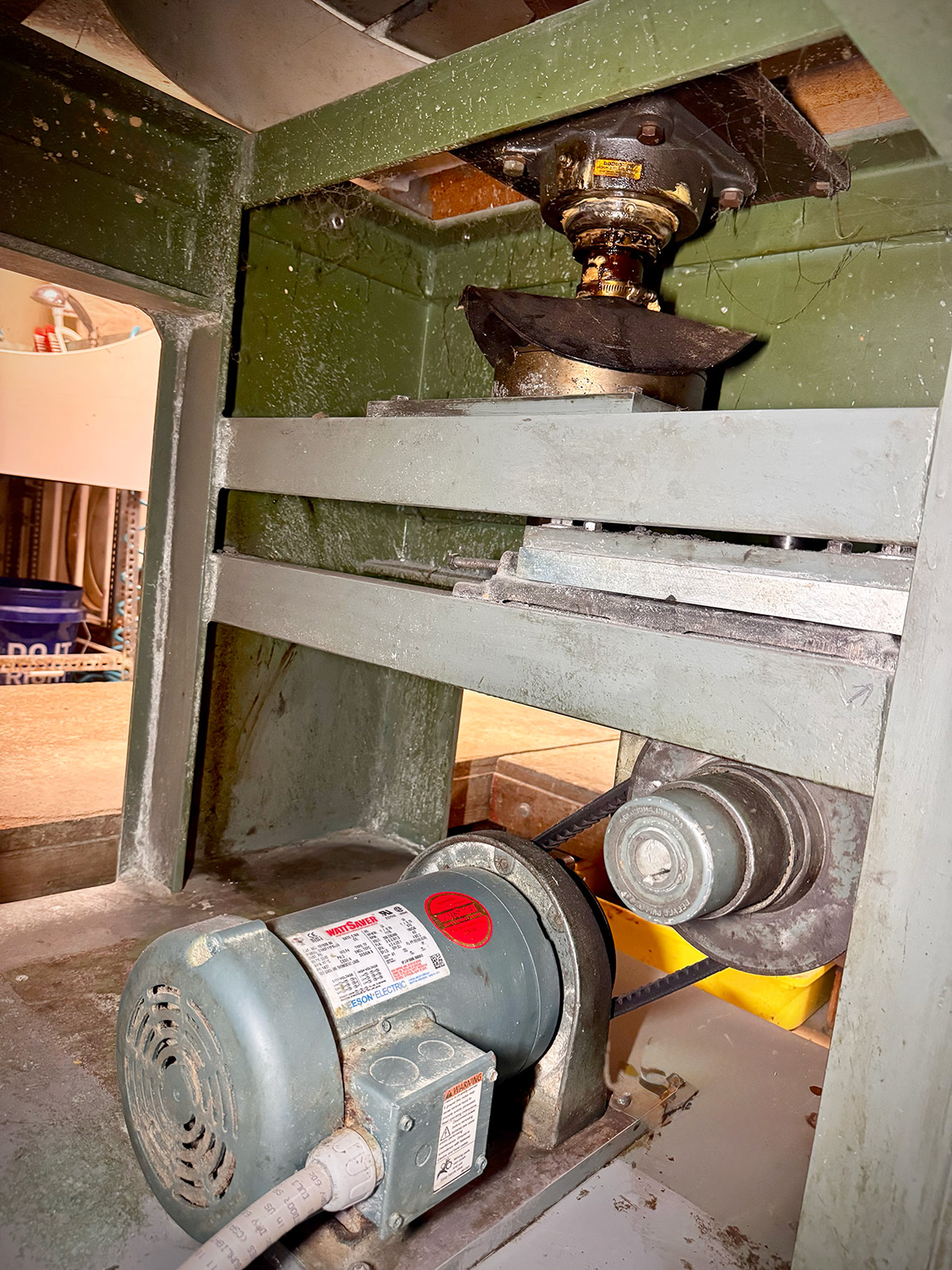

CG-3 Belt Drive & Gearbox

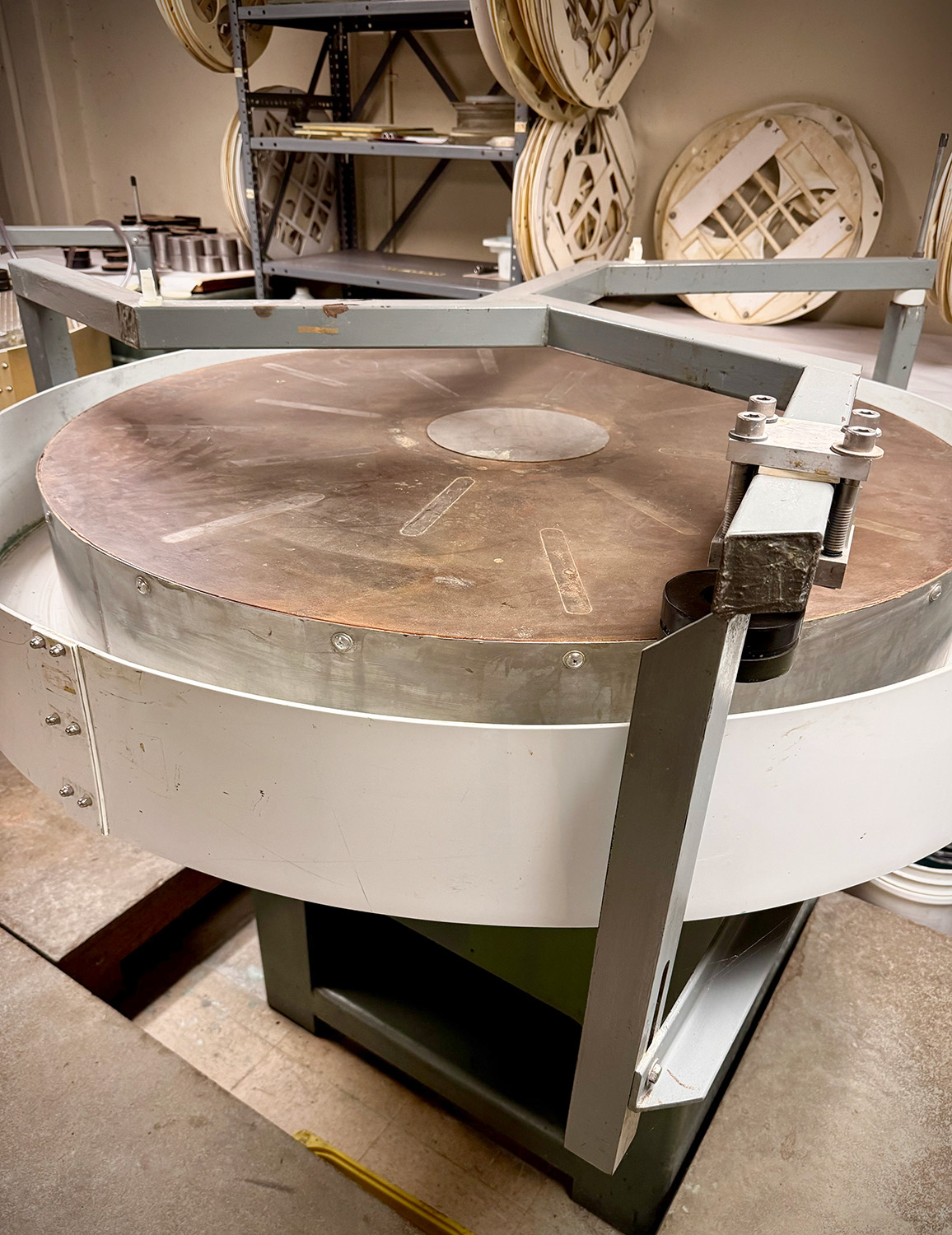

CG-3 Full View

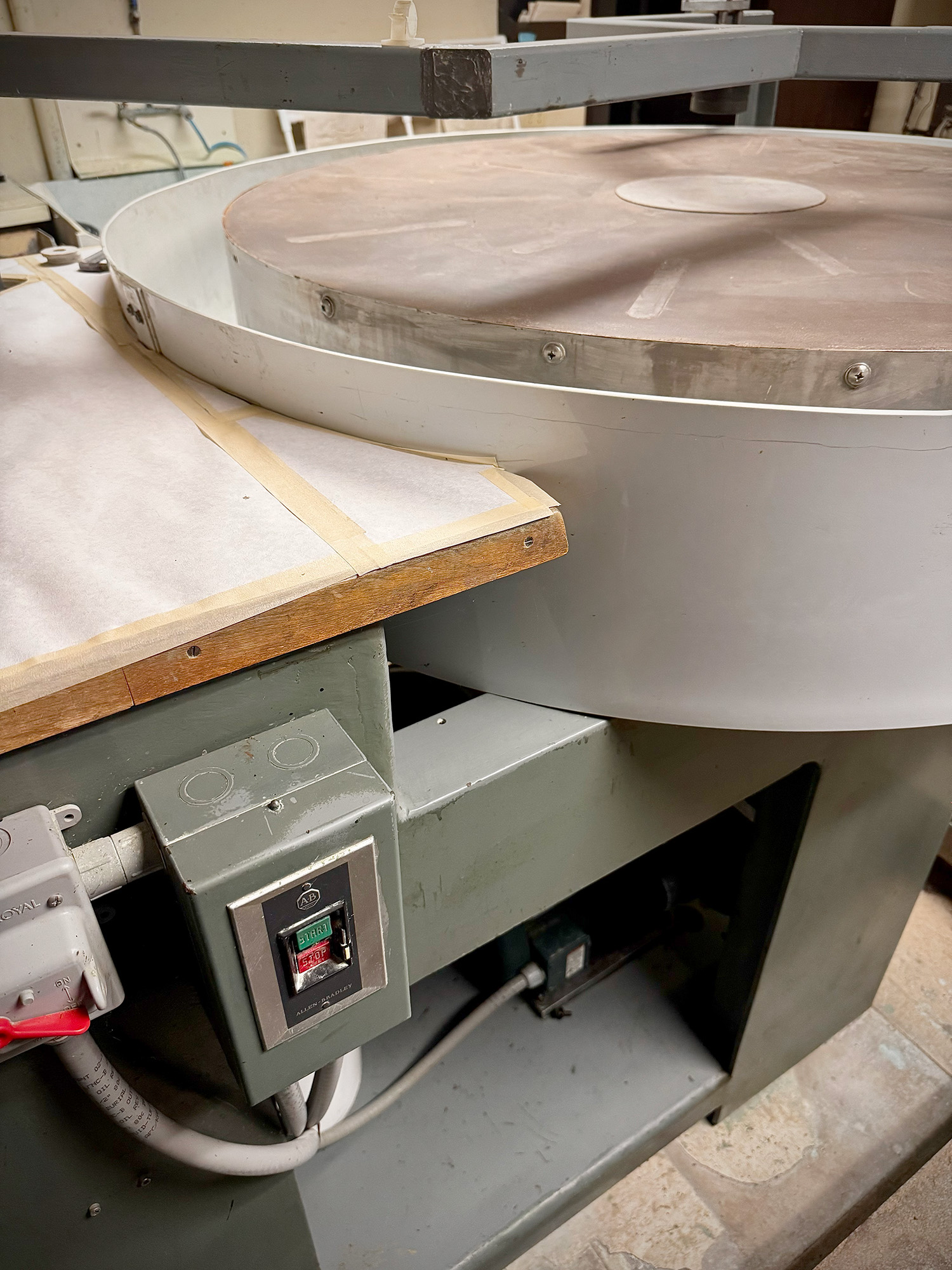

CG-3 On Off Switch

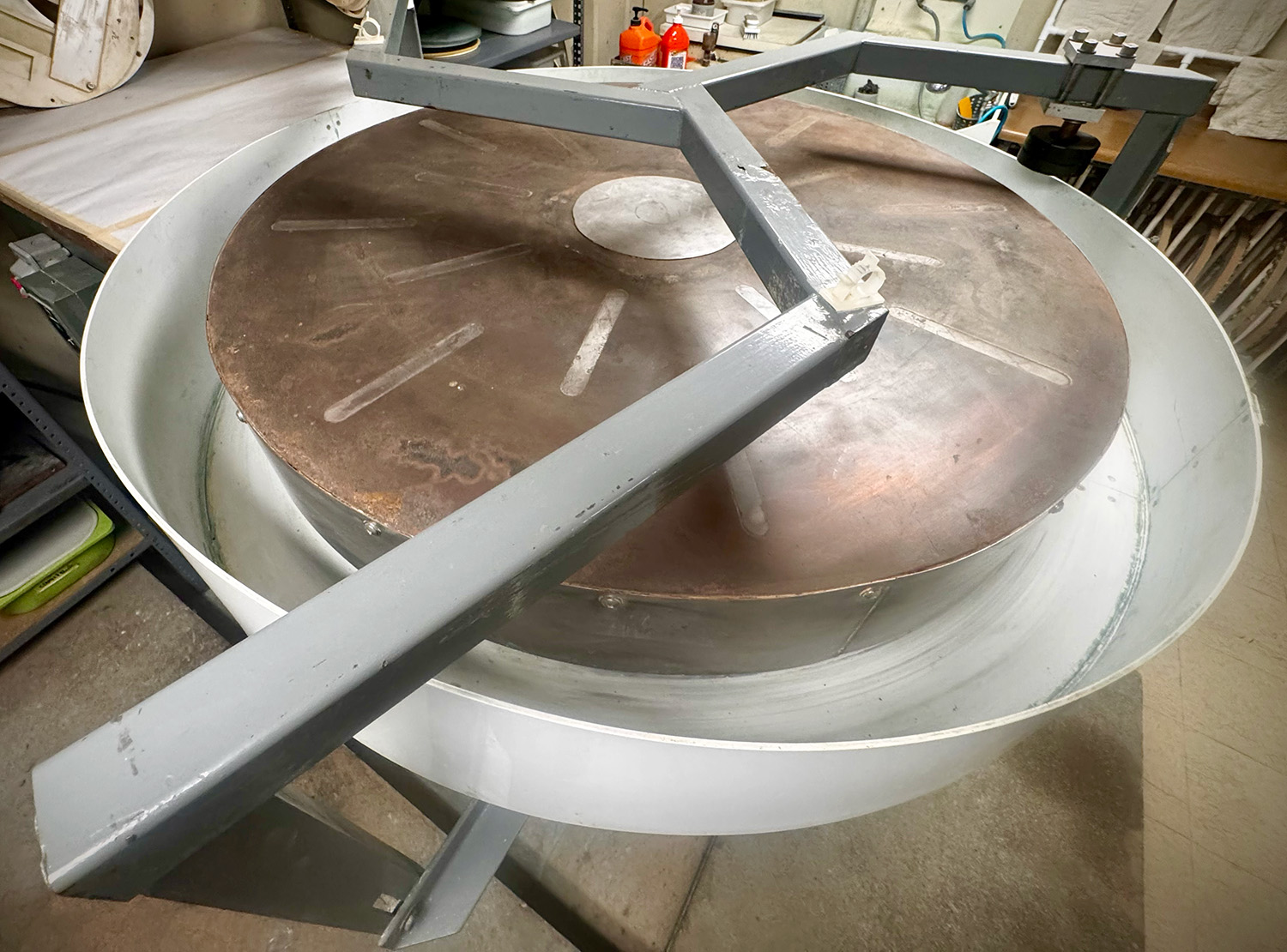

CG-3 Top View
