SIDAI Fully Automatic Centering Machines

Automated Centering and Beveling With Extended Unattended Operation

Designed for automated centering and beveling of lenses and plane workpieces, the SPCM-M1-AT50 integrates robotic loading and unloading with two lens-holding pallets for efficient production. Depending on component size, up to 600 lenses can be loaded for automatic processing. Once operating parameters are established, the machine can operate uninterrupted for approximately 4–8 hours, helping increase productivity while reducing direct operator involvement. Its compact footprint also helps conserve valuable manufacturing floor space.

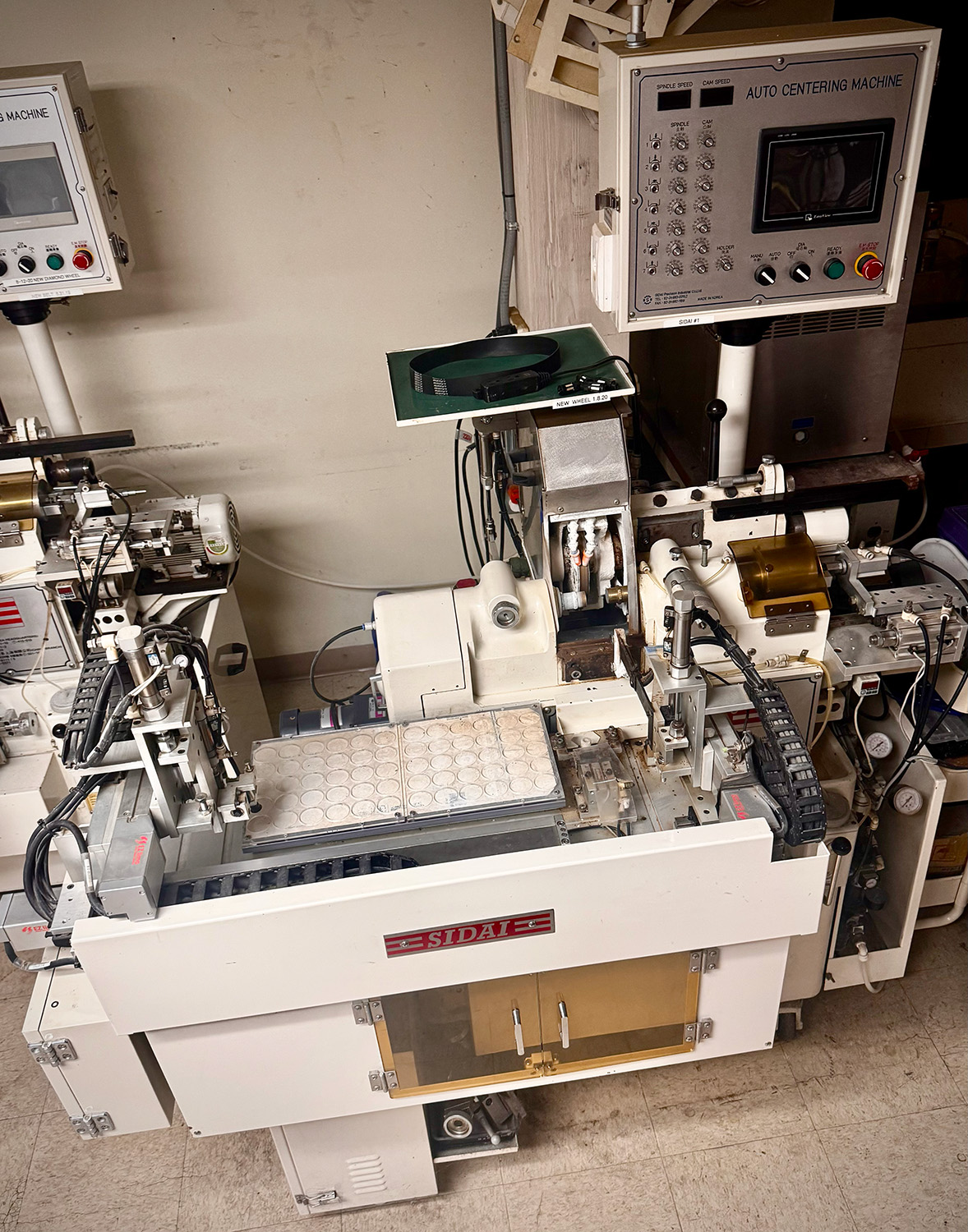

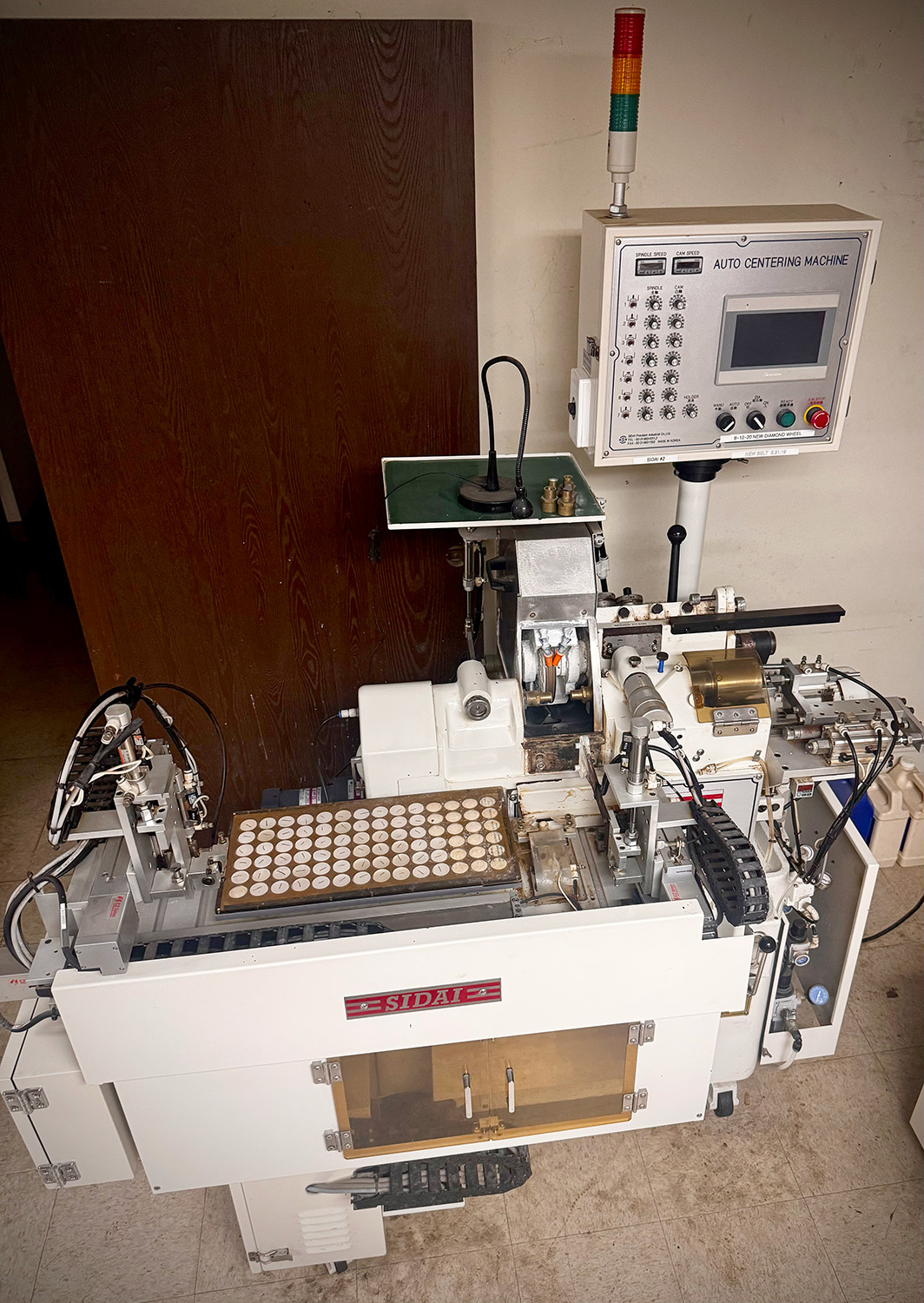

Two SIDAI Fully Automatic Centering Machines are available.

SIDAI Fully Automatic Centering Machine Features

Fully automatic centering and beveling
Pneumatic / Robotic loading and unloading

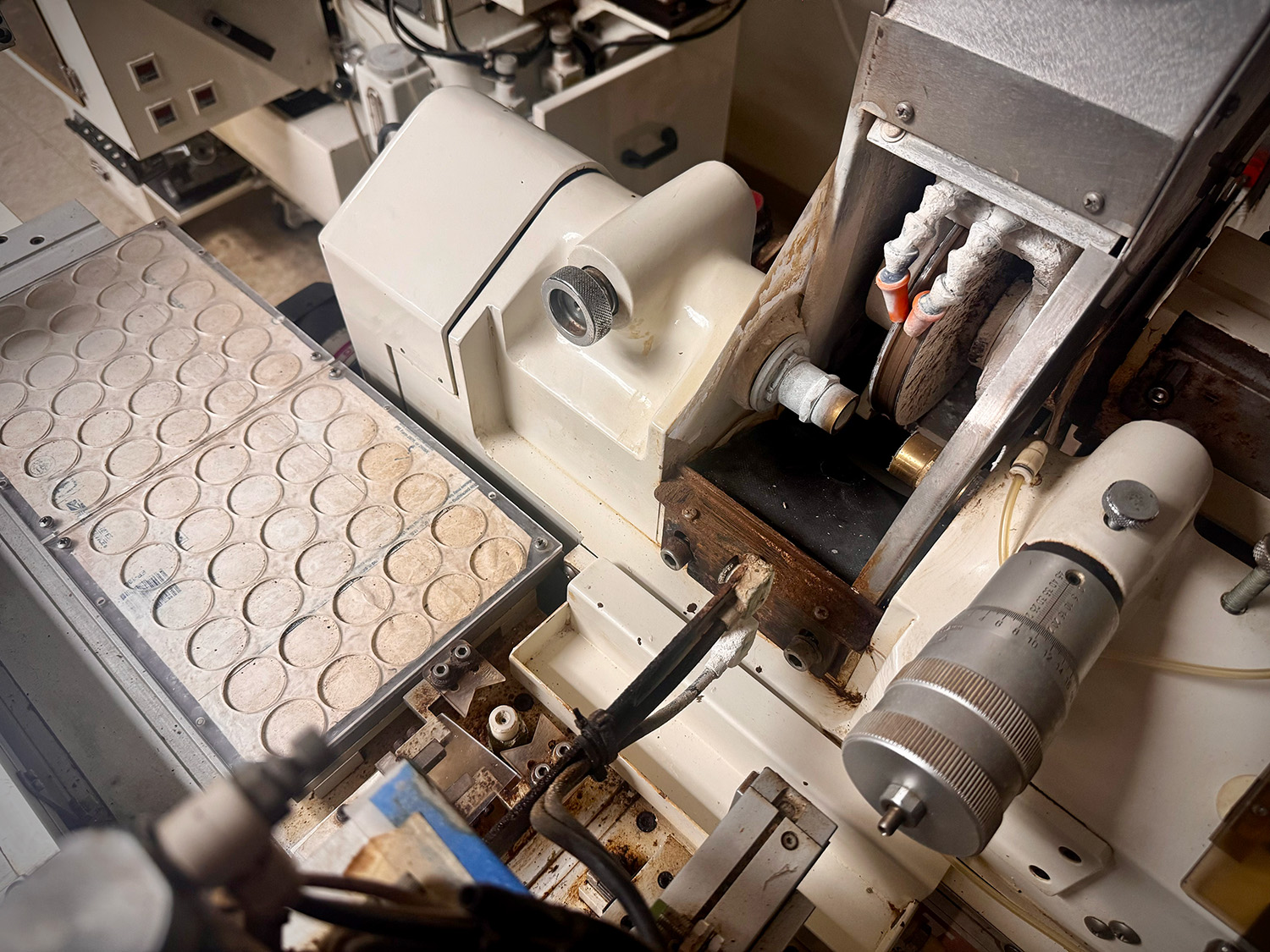

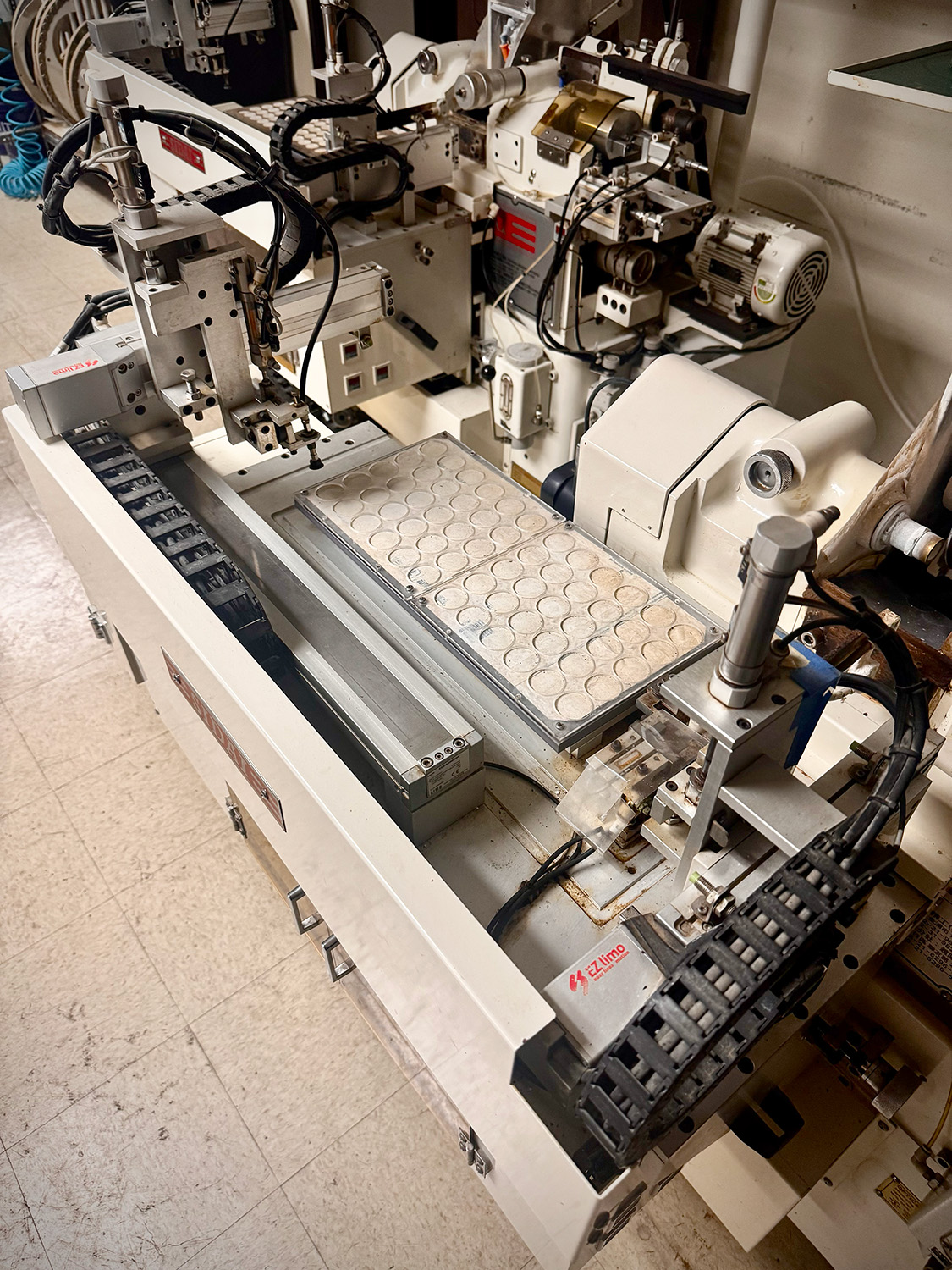

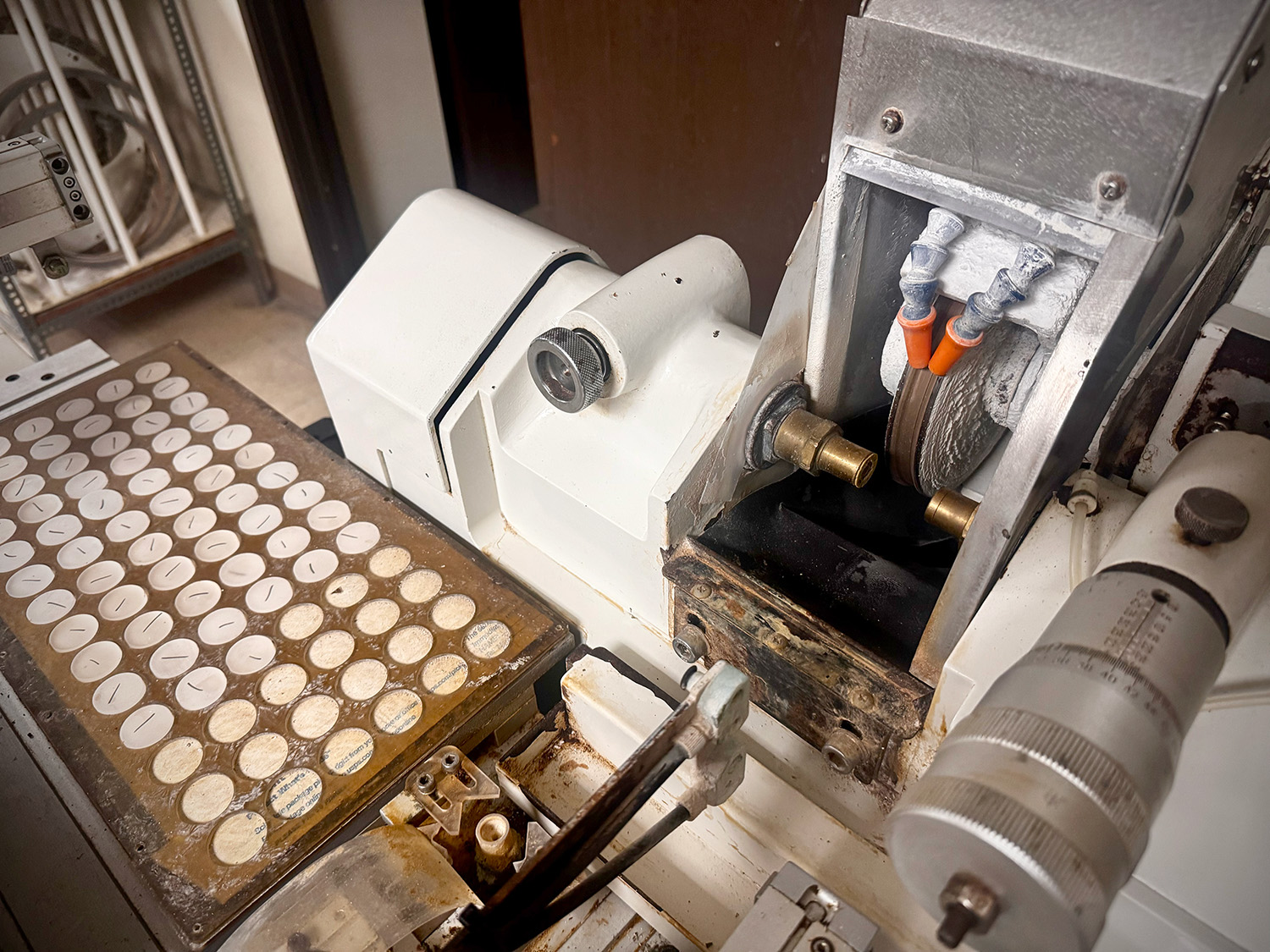

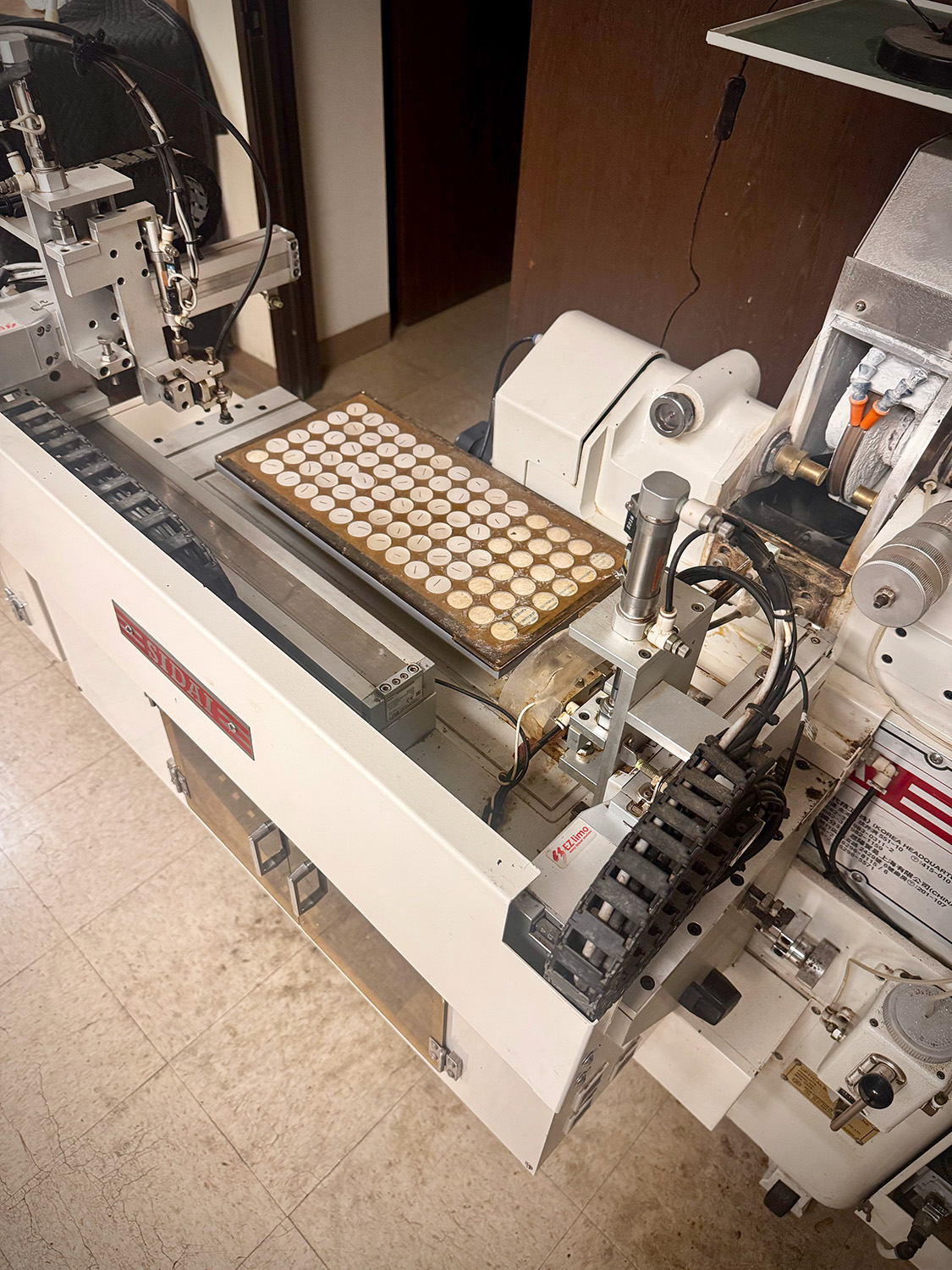

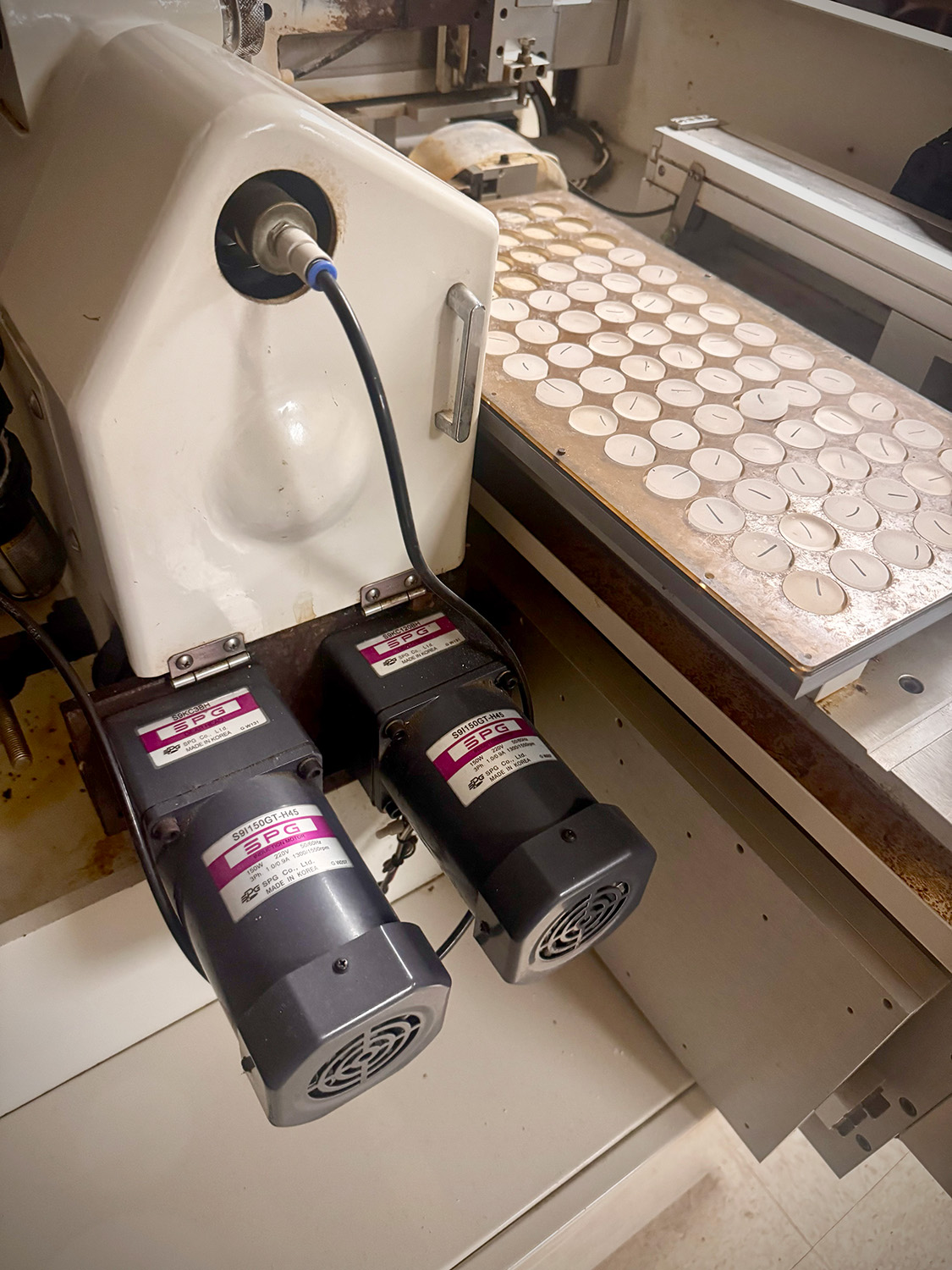

Two integrated lens-holding pallets
Optical component range: 5 mm–50 mm
Up to 600 lenses can be loaded depending on component size
Approximately 4–8 hours of unattended operation after setup
Seven-step grinding feed speeds for increased precision and productivity
Holder adjustment without removing the spindles helps preserve machine setup accuracy
Standardized pallet size accommodates varying lens sizes while reducing the need for additional jigs

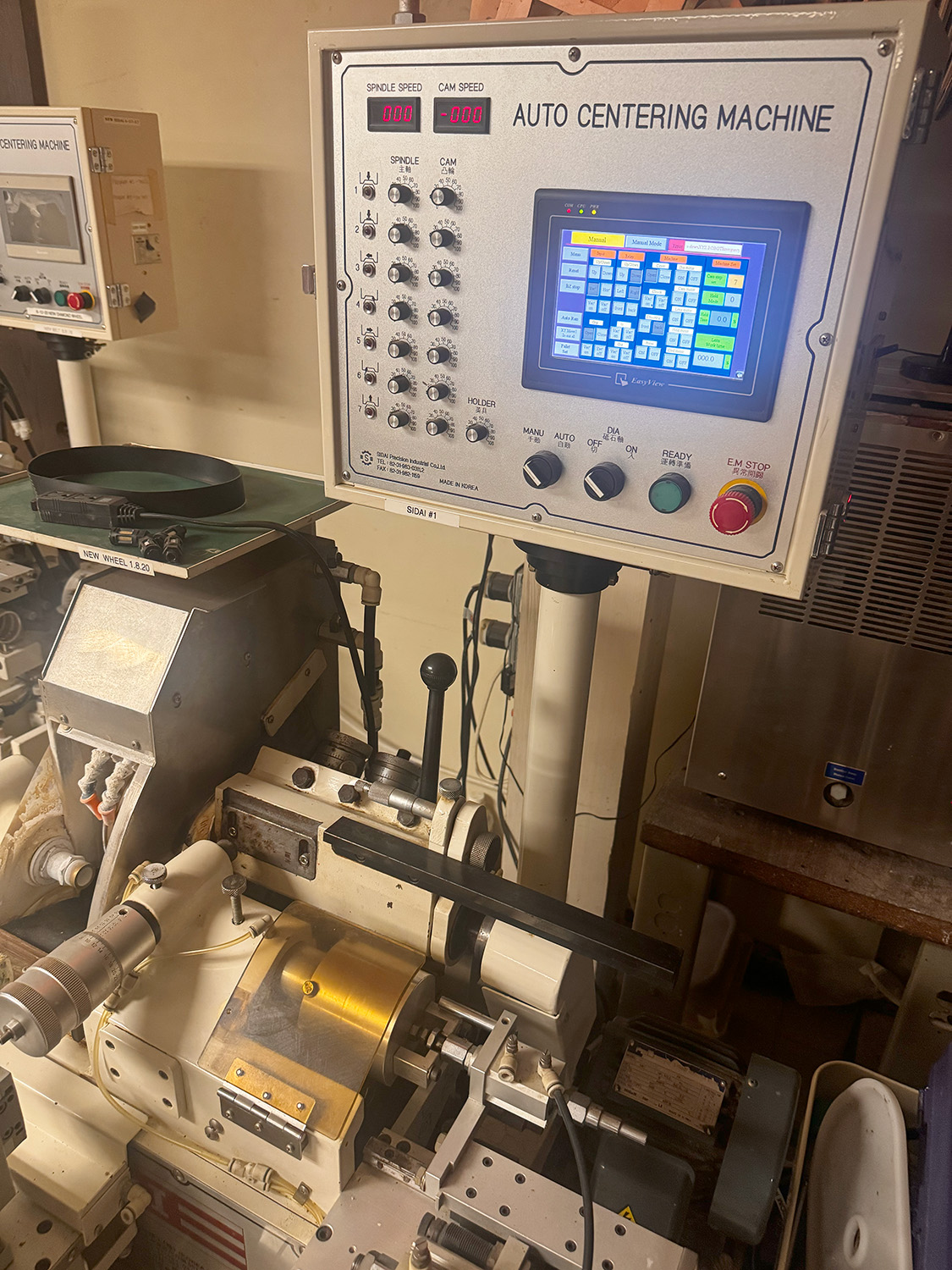

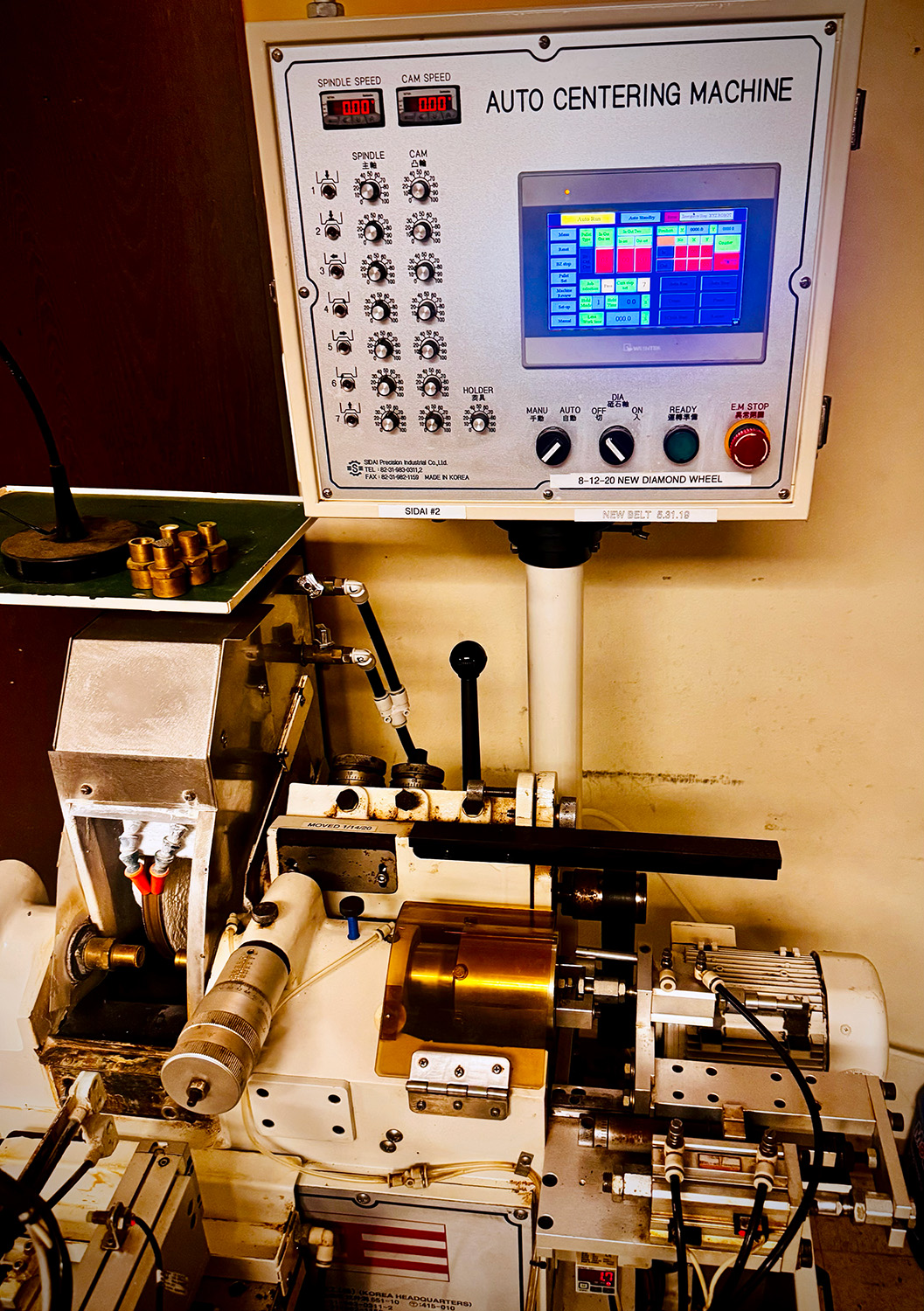

Straightforward operating system suitable for operators with limited experience
Non-critical errors can be bypassed during unattended processing
Machine stops automatically when an error could affect final product quality
Approximate machine base: 70” × 48”
